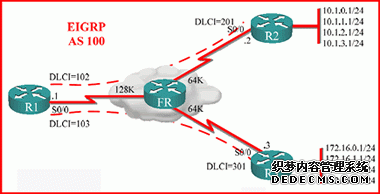

EIGRP路由協議的配置拓?fù)鋱D

1. R1(config)#router eigrp 100
2. R1(config-router)#no auto-summary //關閉自動匯總
3. R1(config-router)#net 192.168.1.0 //宣告路由條目
4. R1(config-router)#end
5.
6. R2(config)#router eigrp 100
7. R2(config-router)#no auto-summary
8. R2(config-router)#net 192.168.1.0
9. R2(config-router)#net 10.1.0.0 0.0.255.255 //宣告路由條目
10. R2(config-router)#end
11.
12. R3(config)#router eigrp 100
13. R3(config-router)#no auto-summary
14. R3(config-router)#net 192.168.1.0
15. R3(config-router)#net 172.16.0.0 0.0.255.255
16. R3(config-router)#end

檢查：

1. R1#show ip eigrp neighbors //查看eigrp 鄰居表，發現并沒有鄰居
2. IP-EIGRP neighbors for process 100
3.
4. R1#show ip eigrp topology //查看EIGRP 拓?fù)浔恚]有學習到任何的路由
5. IP-EIGRP Topology Table for AS(100)/ID(192.168.1.1)
6.
7. Codes: P – Passive, A – Active, U – Update, Q – Query, R – Reply,
8. r – reply Status, s – sia Status
9.
10. P 192.168.1.0/24, 1 successors, FD is 2169856
11. via Connected, Serial0/0

因?yàn)?strong>幀中繼默認為NBMA 模式，也就是非廣播的多路訪問模式，它會阻止廣播數據和組播數據，我們在接口配置過程中，幀中繼的DLCI 號和IP 映射時也沒有配置broadcast 參數，而EIGRP 路由協議通過組播地址224.0.0.10 來發送相應的路由信息（比如hello、update 等數據包），所以R1 并沒有發現任何的鄰居路由器。
為了能讓EIGRP的路由信息通過幀中繼傳播，在沒有配置broadcast 參數的情況下，我們可以通過單播的形式來發送EIGRP 數據包，我們對以上的配置進行改進：

1. R1(config)#router eigrp 100
2. R1(config-router)#neighbor 192.168.1.2 serial 0/0 //手工指定鄰居，實現單播方式
3. R1(config-router)#neighbor 192.168.1.3 serial 0/0
4. R1(config-router)#end
5.
6. R2(config)#router eigrp 100
7. R2(config-router)#neighbor 192.168.1.1 serial 0/0 //手工指定鄰居，實現單播方式
8. R2(config-router)#end
9.
10. R3(config)#router eigrp 100
11. R3(config-router)#neighbor 192.168.1.1 serial 0/0 //手工指定鄰居，實現單播方式
12. R3(config-router)#end

驗證：

1. *Mar 1 00:29:18.955: %DUAL-5-NBRCHANGE: IP-EIGRP(0) 100: Neighbor 192.168.1.2 (Serial0/0) is up: new adjacency
2. *Mar 1 00:29:19.115: %DUAL-5-NBRCHANGE: IP-EIGRP(0) 100: Neighbor 192.168.1.3 (Serial0/0) is up: new adjacency
3. R1#show ip eigrp neighbors
4. IP-EIGRP neighbors for process 100
5. H Address Interface Hold Uptime SRTT RTO Q Seq
6. (sec) (ms) Cnt Num
7. 1 192.168.1.3 Se0/0 156 00:01:19 99 594 0 3
8. 0 192.168.1.2 Se0/0 154 00:01:19 137 822 0 3
9.
10. R2#
11. *Mar 1 00:29:18.979: %DUAL-5-NBRCHANGE: IP-EIGRP(0) 100: Neighbor 192.168.1.1 (Serial0/0) is up: new adjacency
12. R2#
13. R2#show ip eigrp neighbor
14. IP-EIGRP neighbors for process 100
15. H Address Interface Hold Uptime SRTT RTO Q Seq
16. (sec) (ms) Cnt Num
17. 0 192.168.1.1 Se0/0 138 00:02:31 171 1026 0 7

R1#show ip route eigrp 100 //查看路由表，可以看到R1 能夠?qū)W習到R2 和R3 相應的網絡

1. 172.16.0.0/24 is subnetted, 4 subnets
2. D 172.16.0.0 [90/2297856] via 192.168.1.3, 00:03:45, Serial0/0
3. D 172.16.1.0 [90/2297856] via 192.168.1.3, 00:03:45, Serial0/0
4. D 172.16.2.0 [90/2297856] via 192.168.1.3, 00:03:45, Serial0/0
5. D 172.16.3.0 [90/2297856] via 192.168.1.3, 00:03:45, Serial0/0
6. 10.0.0.0/24 is subnetted, 4 subnets
7. D 10.1.3.0 [90/2297856] via 192.168.1.2, 00:03:45, Serial0/0
8. D 10.1.2.0 [90/2297856] via 192.168.1.2, 00:03:45, Serial0/0
9. D 10.1.1.0 [90/2297856] via 192.168.1.2, 00:03:45, Serial0/0
10. D 10.1.0.0 [90/2297856] via 192.168.1.2, 00:03:45, Serial0/0

R1#ping 10.1.0.1 //驗證是否可以訪問R2 的網絡

1. Type escape sequence to abort.
2. Sending 5, 100-byte ICMP Echos to 10.1.0.1, timeout is 2 seconds:
3. !!!!!
4. Success rate is 100 percent (5/5), round-trip min/avg/max = 20/56/104 ms
5. R1#ping 172.16.0.1 //驗證是否可以訪問R3 的網絡
6.
7. Type escape sequence to abort.
8. Sending 5, 100-byte ICMP Echos to 172.16.0.1, timeout is 2 seconds:
9. !!!!!
10. Success rate is 100 percent (5/5), round-trip min/avg/max = 8/52/124 ms

查看R2 的路由表：

1. R2#show ip route
2. Codes: C – connected, S – static, R – RIP, M – mobile, B – BGP
3. D – EIGRP, EX – EIGRP external, O – OSPF, IA – OSPF inter area
4. N1 – OSPF NSSA external type 1, N2 – OSPF NSSA external type 2
5. E1 – OSPF external type 1, E2 – OSPF external type 2
6. i – IS-IS, su – IS-IS summary, L1 – IS-IS level-1, L2 – IS-IS level-2
7. ia – IS-IS inter area, * – candidate default, U – per-user static route
8. o – ODR, P – periodic downloaded static route
9.
10. Gateway of last resort is not set
11.
12. 10.0.0.0/24 is subnetted, 4 subnets
13. C 10.1.3.0 is directly connected, Loopback3
14. C 10.1.2.0 is directly connected, Loopback2
15. C 10.1.1.0 is directly connected, Loopback1
16. C 10.1.0.0 is directly connected, Loopback0
17. C 192.168.1.0/24 is directly connected, Serial0/0
18. 發現R2 并沒有學習到R3 的172.16.0.0 網絡， R1 通過S0/0 接口學習到R3 宣告的172.16.0.0網絡，因?yàn)镽1 s0/0 接口的水平分割機制導致R1 不會再由這個接口S0/0 發布出去，所以R2無法學習到R3 宣告的網絡，同理，R3 也無法學習到R2 宣告的網絡。
    對幀中繼配置進行修正，使用broadcast 參數：

    1. R1(config)#router eigrp 100
    2. R1(config-router)#no neighbor 192.168.1.2 s0/0 //取消手工指定鄰居
    3. *Mar 1 00:42:29.807: %DUAL-5-NBRCHANGE: IP-EIGRP(0) 100: Neighbor 192.168.1.2 (Serial0/0) is down:
    4. R1(config-router)#no neighbor 192.168.1.3 s0/0
    5. *Mar 1 00:42:32.623: %DUAL-5-NBRCHANGE: IP-EIGRP(0) 100: Neighbor 192.168.1.3 (Serial0/0) is down:
    6. R1(config-router)#exit
    7. R1(config)#int s0/0
    8. R1(config-if)#no fram map ip 192.168.1.2 102 //取消之前不帶broadcast 參數的靜態映射
    9. R1(config-if)#no fram map ip 192.168.1.3 103
    10. R1(config-if)#frame map ip 192.168.1.2 102 broadcast
    11. R1(config-if)#frame map ip 192.168.1.3 103 broadcast
    12. R1(config-if)#end
    13.
    14. R2(config)#router eigrp 100
    15. R2(config-router)#no neighbor 192.168.1.1 Serial0/0
    16. R2(config-router)#int s0/0
    17. R2(config-if)#no frame-relay map ip 192.168.1.1 201
    18. R2(config-if)# frame-relay map ip 192.168.1.1 201 broadcast
    19.
    20. R3(config)#router eigrp 100
    21. R3(config-router)#no neighbor 192.168.1.1 Serial0/0
    22. R3(config-router)#int s0/0
    23. R3(config-if)#no
    24. *Mar 1 00:47:58.943: %DUAL-5-NBRCHANGE: IP-EIGRP(0) 100: Neighbor 192.168.1.1 (Serial0/0) is up: new adjacency
    25. R3(config-if)#no frame-relay map ip 192.168.1.1 301
    26. R3(config-if)#frame-relay map ip 192.168.1.1 301 broadcast
    27. R3(config-if)#end
    驗證結果：
    可以看到添加了broadcast 后，幀中繼可以正常的傳遞組播數據了，R1 就可以和R2 和R3 建立鄰居關系并正常學習到路由。

    1. R1#show ip eigrp neighbors
    2. IP-EIGRP neighbors for process 100
    3. H Address Interface Hold Uptime SRTT RTO Q Seq
    4. (sec) (ms) Cnt Num
    5. 1 192.168.1.3 Se0/0 178 00:00:03 906 5000 0 7
    6. 0 192.168.1.2 Se0/0 178 00:01:57 1040 5000 0 6
    7. R1#show ip route eigrp 100
    8. 172.16.0.0/24 is subnetted, 4 subnets
    9. D 172.16.0.0 [90/2297856] via 192.168.1.3, 00:00:53, Serial0/0
    10. D 172.16.1.0 [90/2297856] via 192.168.1.3, 00:00:53, Serial0/0
    11. D 172.16.2.0 [90/2297856] via 192.168.1.3, 00:00:53, Serial0/0
    12. D 172.16.3.0 [90/2297856] via 192.168.1.3, 00:00:53, Serial0/0
    13. 10.0.0.0/24 is subnetted, 4 subnets
    14. D 10.1.3.0 [90/2297856] via 192.168.1.2, 00:02:46, Serial0/0
    15. D 10.1.2.0 [90/2297856] via 192.168.1.2, 00:02:46, Serial0/0
    16. D 10.1.1.0 [90/2297856] via 192.168.1.2, 00:02:46, Serial0/0
    17. D 10.1.0.0 [90/2297856] via 192.168.1.2, 00:02:46, Serial0/0
    查看R3 的路由表，發現R3 并沒有學習到R2 的網絡，這是因?yàn)镽1 默認情況下接口有水平。

    1. R3#show ip route
    2. Codes: C – connected, S – static, R – RIP, M – mobile, B – BGP
    3. D – EIGRP, EX – EIGRP external, O – OSPF, IA – OSPF inter area
    4. N1 – OSPF NSSA external type 1, N2 – OSPF NSSA external type 2
    5. E1 – OSPF external type 1, E2 – OSPF external type 2
    6. i – IS-IS, su – IS-IS summary, L1 – IS-IS level-1, L2 – IS-IS level-2
    7. ia – IS-IS inter area, * – candidate default, U – per-user static route
    8. o – ODR, P – periodic downloaded static route
    9.
    10. Gateway of last resort is not set
    11.
    12. 172.16.0.0/24 is subnetted, 4 subnets
    13. C 172.16.0.0 is directly connected, Loopback0
    14. C 172.16.1.0 is directly connected, Loopback1
    15. C 172.16.2.0 is directly connected, Loopback2
    16. C 172.16.3.0 is directly connected, Loopback3
    17. C 192.168.1.0/24 is directly connected, Serial0/0
    將R1 接口的水平分割關閉：

    1. R1(config)#interface serial 0/0
    2. R1(config-if)#no ip split-horizon eigrp 100
    3. R1(config-if)#end
    當R1 的水平分割關閉后，EIGRP 進程會出現相應提示：

    1. *Mar 1 00:52:25.055: %DUAL-5-NBRCHANGE: IP-EIGRP(0) 100: Neighbor 192.168.1.3 (Serial0/0) is resync: split horizon changed
    2. *Mar 1 00:52:25.055: %DUAL-5-NBRCHANGE: IP-EIGRP(0) 100: Neighbor 192.168.1.2 (Serial0/0) is resync: split horizon changed
    查看R1 接口S0/0 的情況：

    1. R1#show ip int s0/0 | include Split
    2. Split horizon is disabled
    查看R2 的路由表：

    1. R2#show ip route eigrp 100
    2. 172.16.0.0/24 is subnetted, 4 subnets
    3. D 172.16.0.0 [90/2809856] via 192.168.1.1, 00:08:03, Serial0/0
    4. D 172.16.1.0 [90/2809856] via 192.168.1.1, 00:08:03, Serial0/0
    5. D 172.16.2.0 [90/2809856] via 192.168.1.1, 00:08:03, Serial0/0
    6. D 172.16.3.0 [90/2809856] via 192.168.1.1, 00:08:03, Serial0/0
    雖然R2 路由表中有172.16.2.0/24 網絡，但R2 并沒有ping 通，這是什么原因？
    因?yàn)镽3 的串行口幀中繼配置時，只做了IP 192.168.1.1 和DLCI 號的對應，沒有做IP 192。168.1.2 和DLCI 號的映射，所以R2 ping 172.16.2.1 時，采用的源地址為192.168.1.2，通過路由表發現目的地址172.16.2.1 具有符合的條目，轉發接口為192.168.1.1，于是由R1 轉發到R3，R3 在回包過程時，源地址為172.16.2.1，而目標地址為192.168.1.2，但它不知道這個地址怎么轉發于是就丟棄。

    1. R3(config)#int s0/0
    2. R3(config-if)#frame-relay map ip 192.168.1.2 301 broadcast
    3. R2(config-if)#end
    4.
    5. R2(config)#int s0/0
    6. R2(config-if)#frame-relay map ip 192.168.1.3 201 broadcast
    7. R2(config-if)#end
    驗證結果：

    1. R2#ping 172.16.1.1
    2.
    3. Type escape sequence to abort.
    4. Sending 5, 100-byte ICMP Echos to 172.16.1.1, timeout is 2 seconds:
    5. !!!!!
    6. Success rate is 100 percent (5/5), round-trip min/avg/max = 44/88/160 ms
    幀中繼的配置結束了，驗證結果大家已經清楚地看到，所以如上所述內容是一個很有說明力度的實例，對于讀者了解EIGRP路由協議的配置是很有幫助的。更多內容請讀者閱讀：
